5X Racing Mazda Miata Drop Floorpan Kit

2 sold in last 8 days

Brand: 5xRacing

SKU: 23993434 - 5XRDFPK

availability: Many in stock

$435.00

Gain 1 1/2" of seat height in your Spec Miata racecar with our floorpan drop kit! Kit includes: floorpan subframe replacement beam welded plate with nut for standard seat belt bolt included, but not pre-welded in case you have a different bolt size patterns included to help guide you through...

Quantity

Quantity must be 1 or more

1 customers are viewing this product

Description

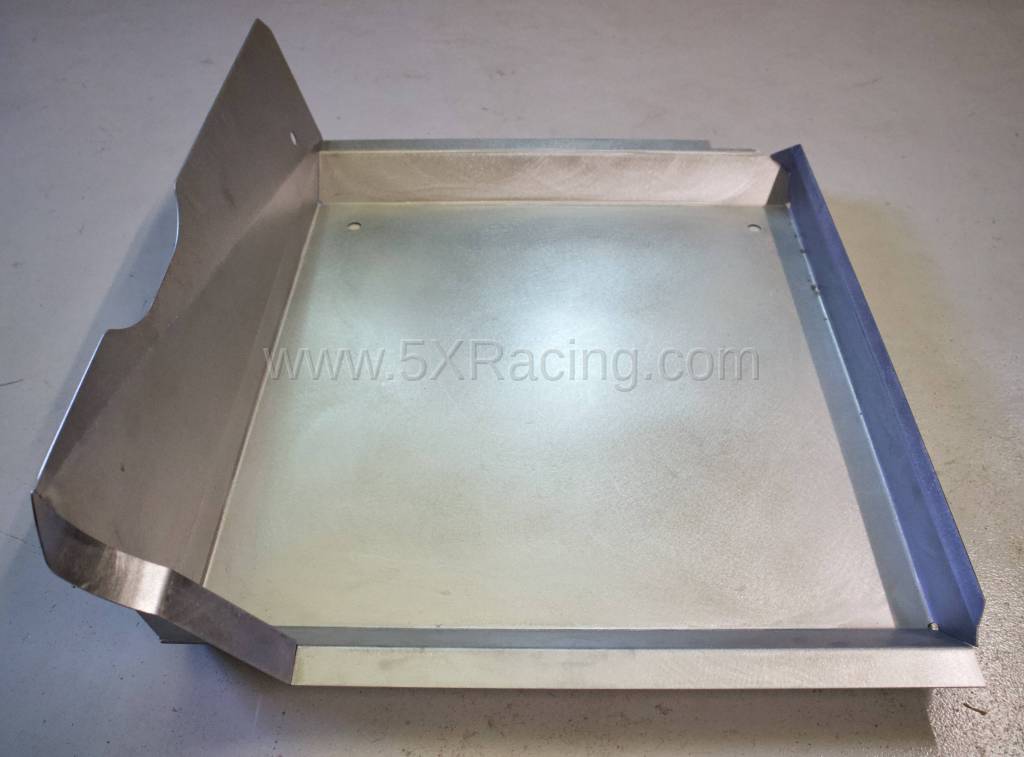

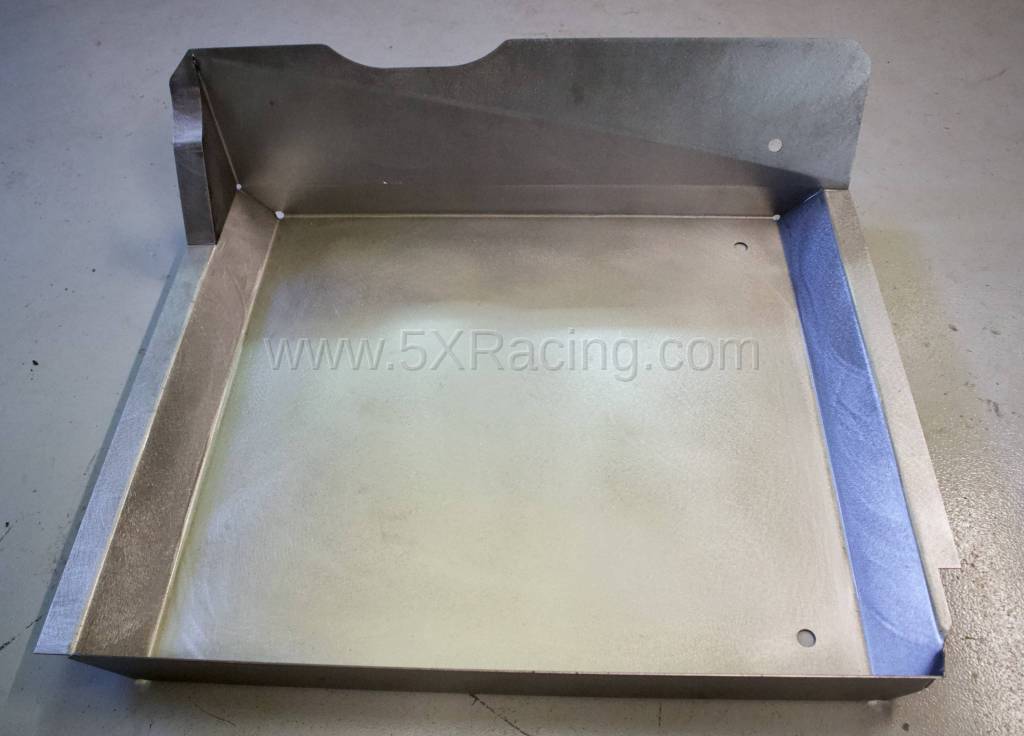

Gain 1 1/2" of seat height in your Spec Miata racecar with our floorpan drop kit!

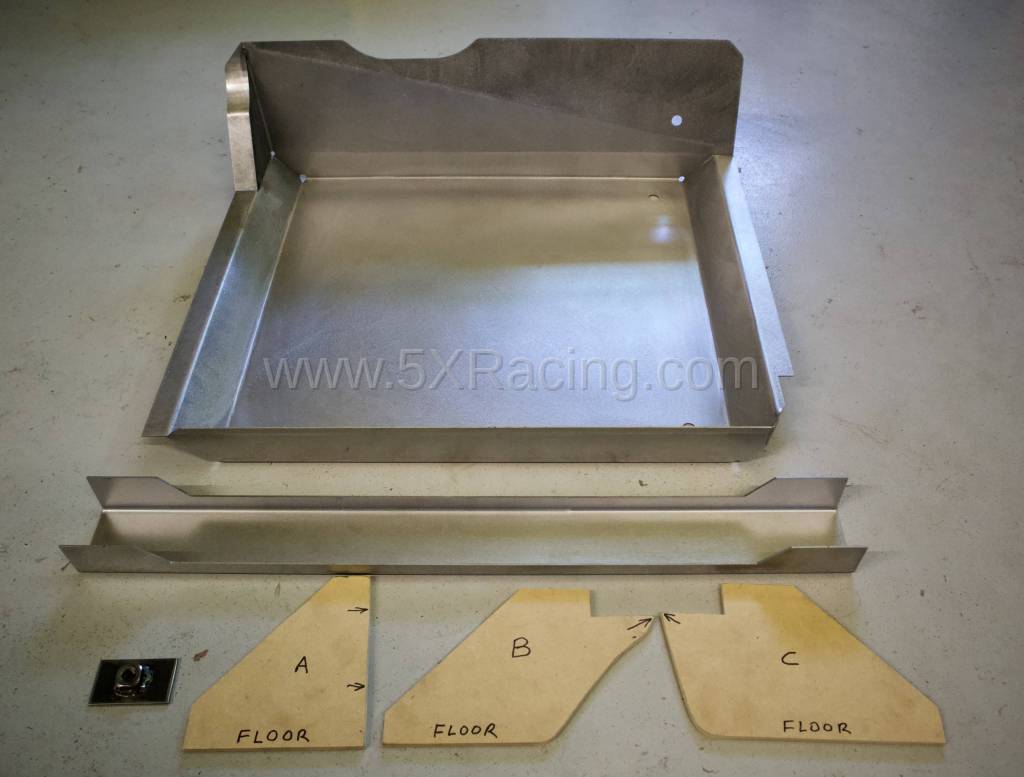

Kit includes:

floorpan
subframe replacement beam
welded plate with nut for standard seat belt bolt included, but not pre-welded in case you have a different bolt size
patterns included to help guide you through the process of marking and cutting the floorpan in the car

When the rules for Spec Miata allowed for dropping the seat area to provide drivers with more head room, our owner John - who is 6'1" 200lbs - was all in for this mod! The tight confines of the Miata make cage design and seat installation difficult, which oftentimes leads to an uncomfortable seating position for the driver. Our floorpan kit was created to meet the criteria of the Spec Miata rules and along the way, we tried to make our design clever enough to ease the minds of those who are intimidated about the difficulty in the installation process. After testing it in our 2002 SM for over a year of racing, we finally have it on our site ready for your car!

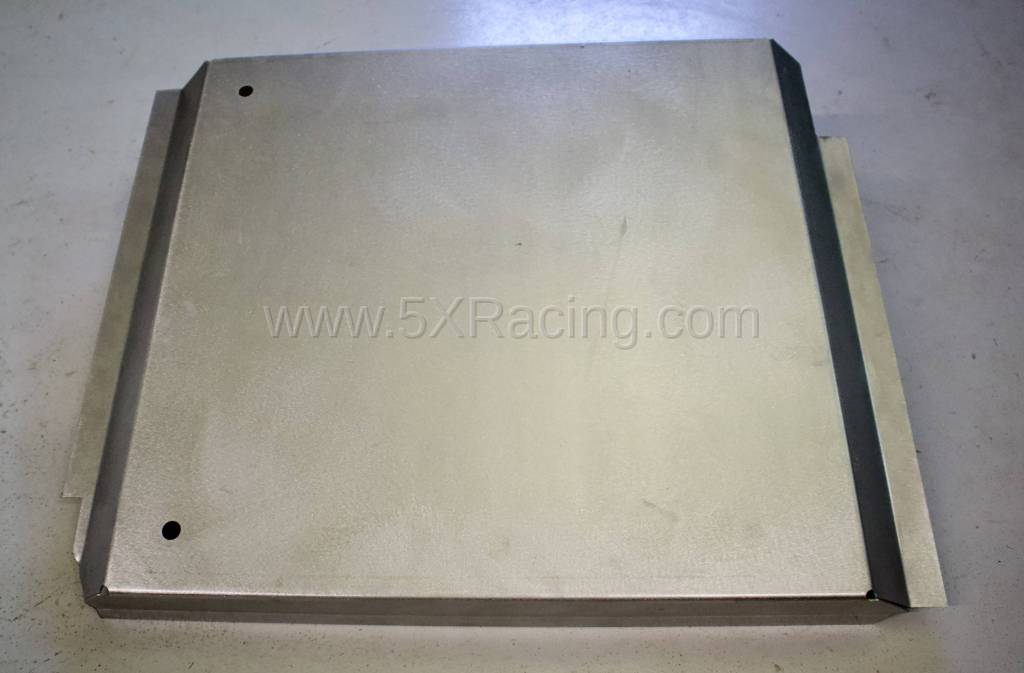

16 gauge cold rolled steel construction per the SCCA rules
Patterns included to help with installation measurements

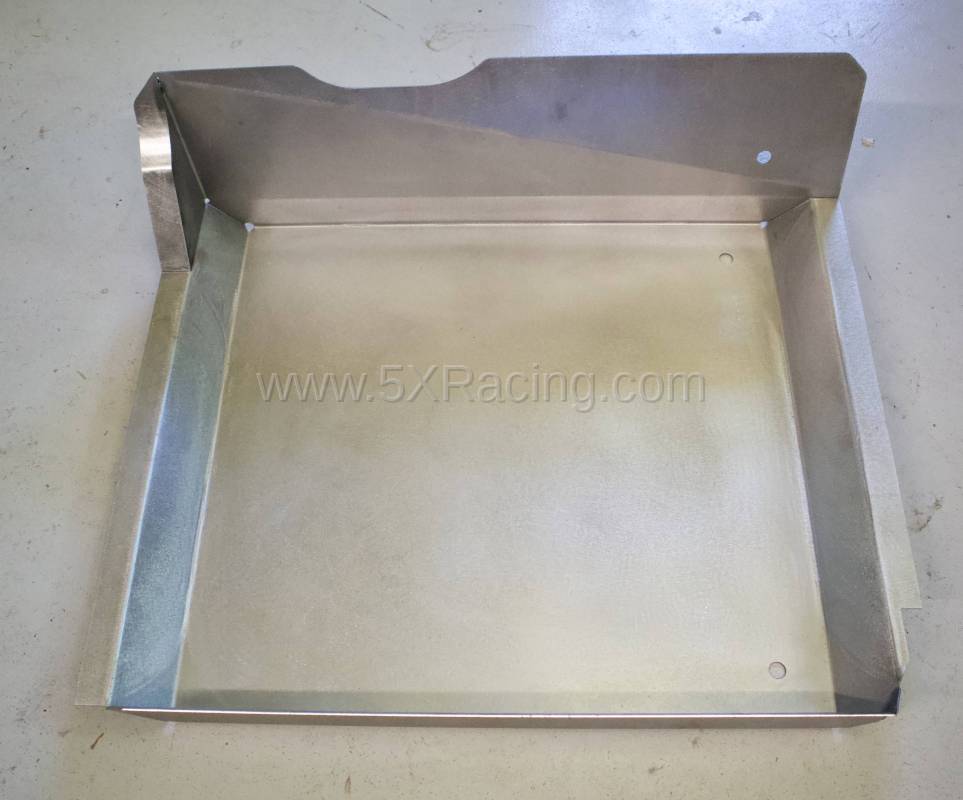

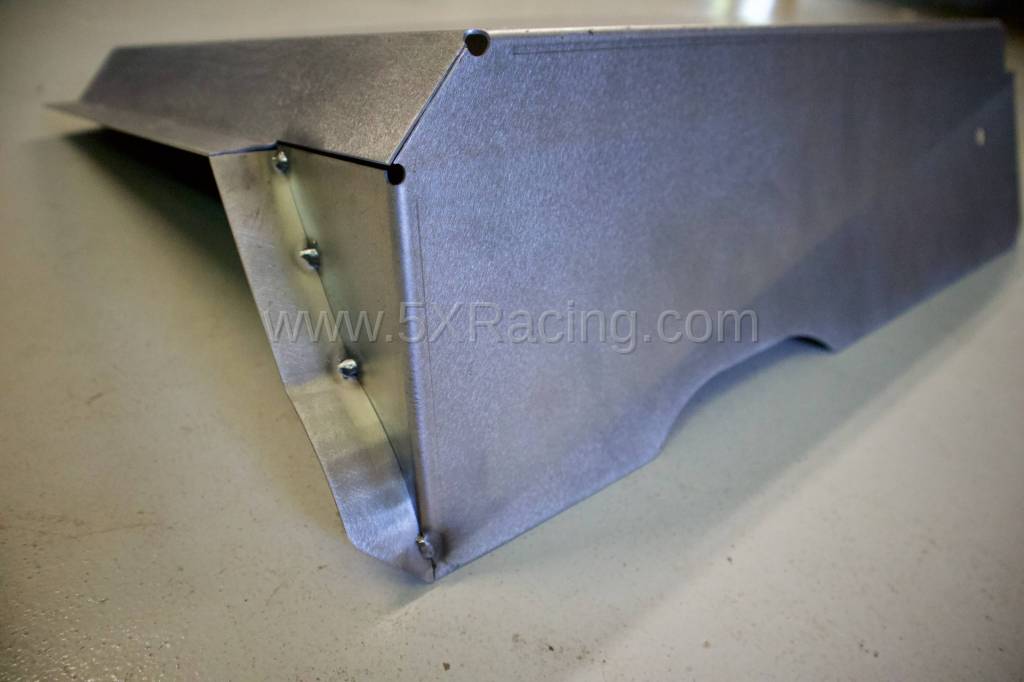

One-piece construction of pan and subframe replacement beam for strength and reduction of welded seams

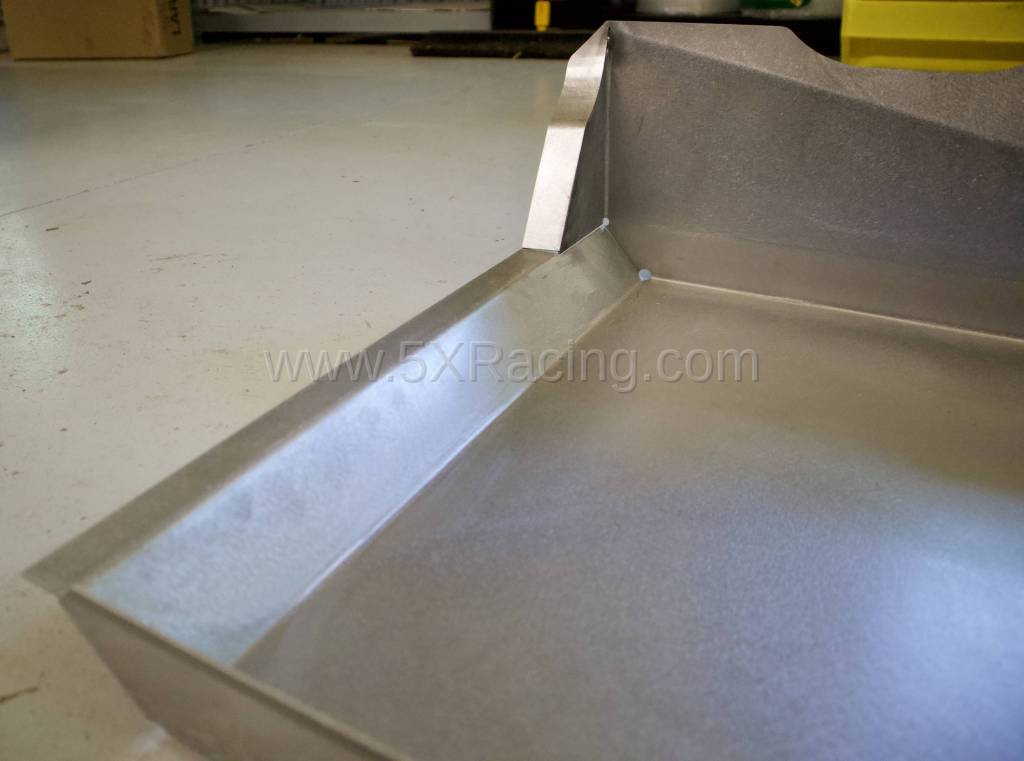

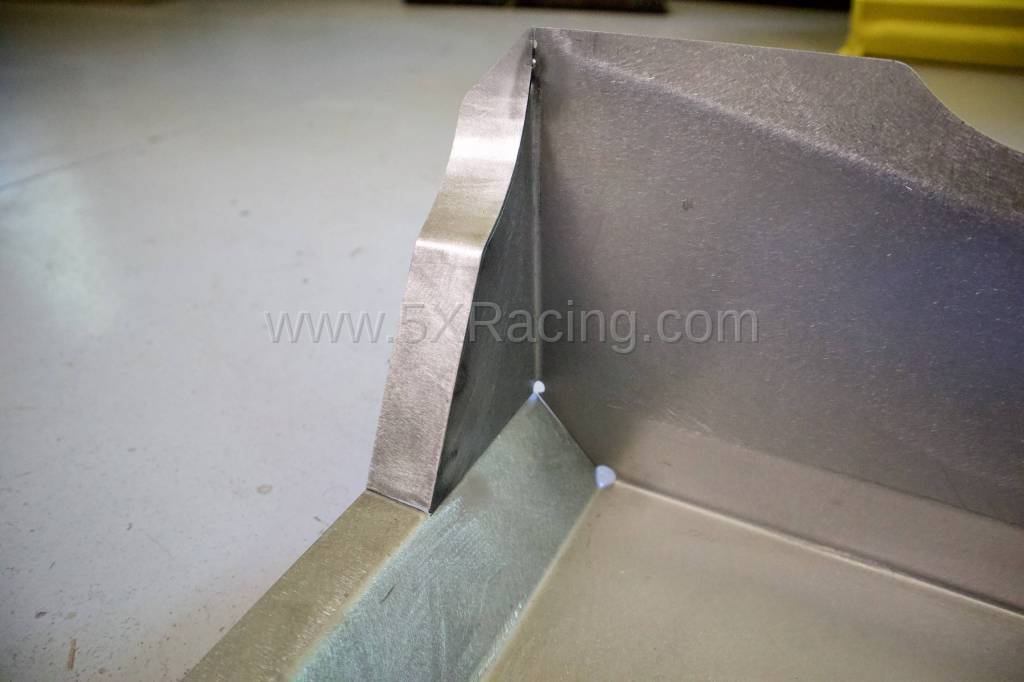

Cleverly placed relief cuts in corners to allow for more movement and better gap closure during installation

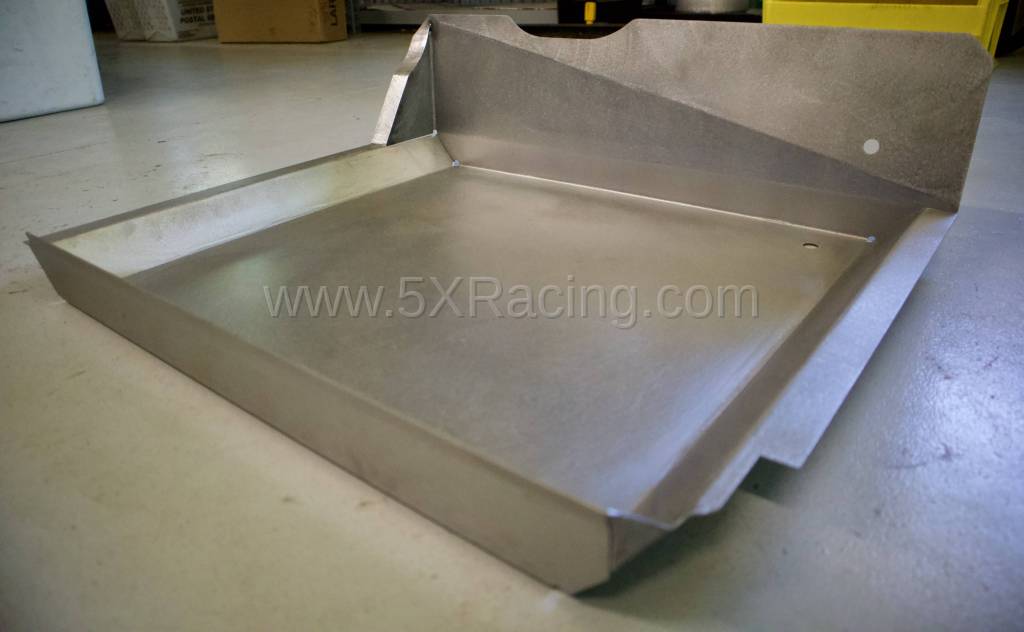

Angled front and rear edges to ease concerns about catching on curbing or debris on track (rear edge because you could be going backwards when you spin out)

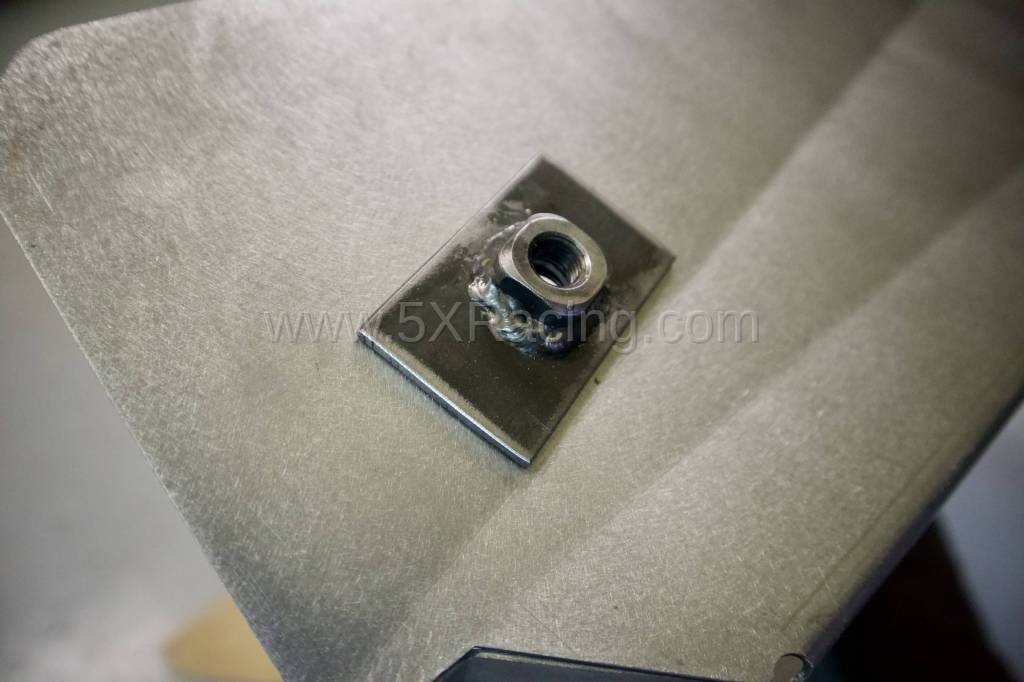

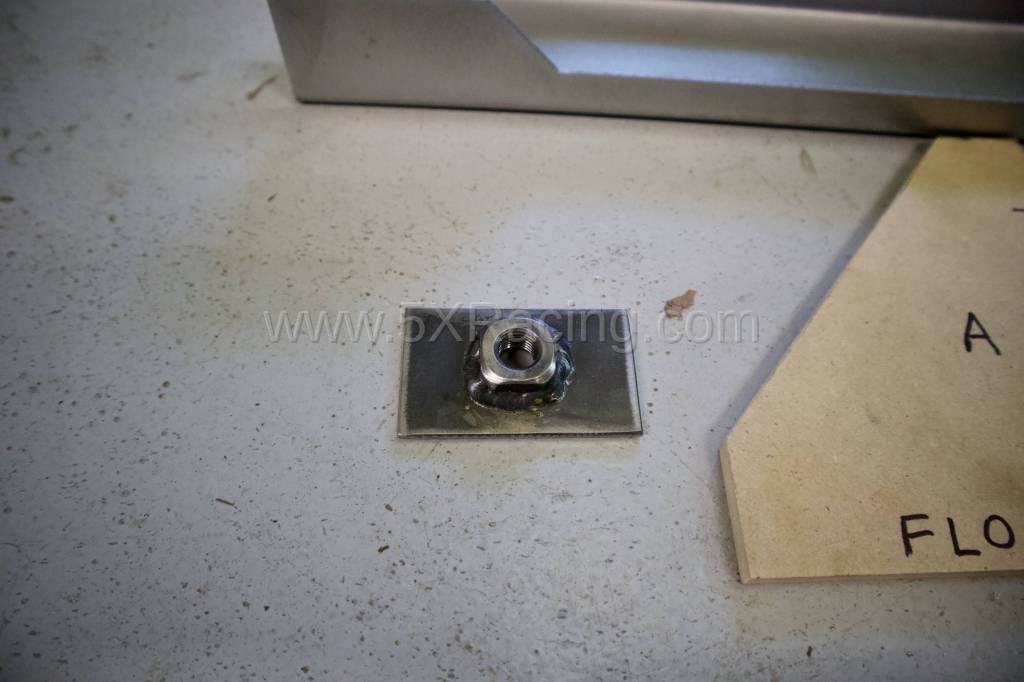

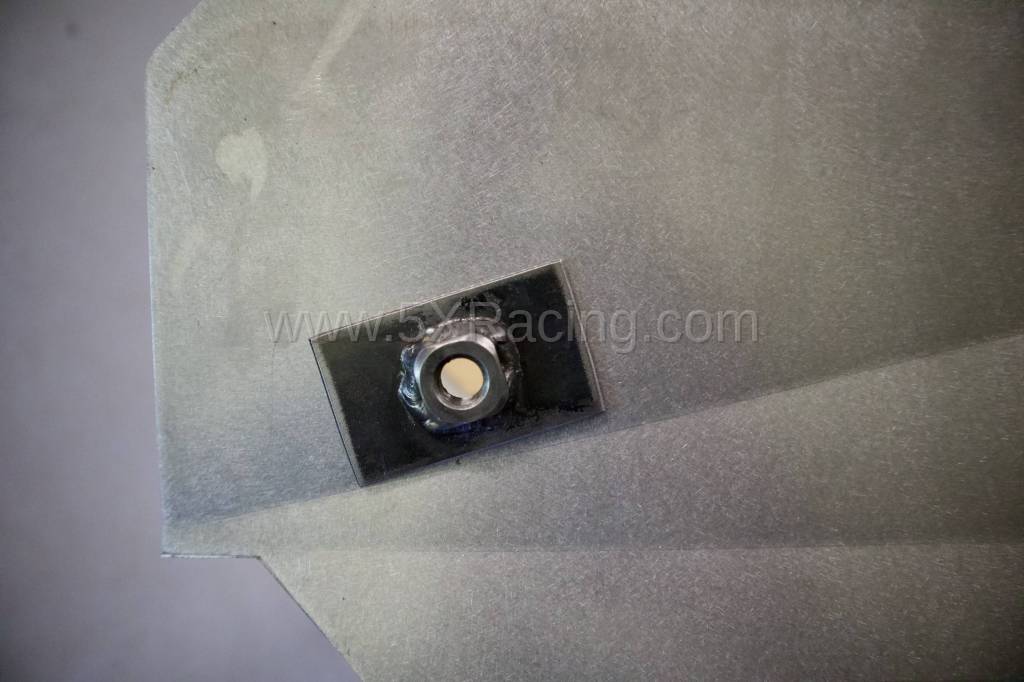

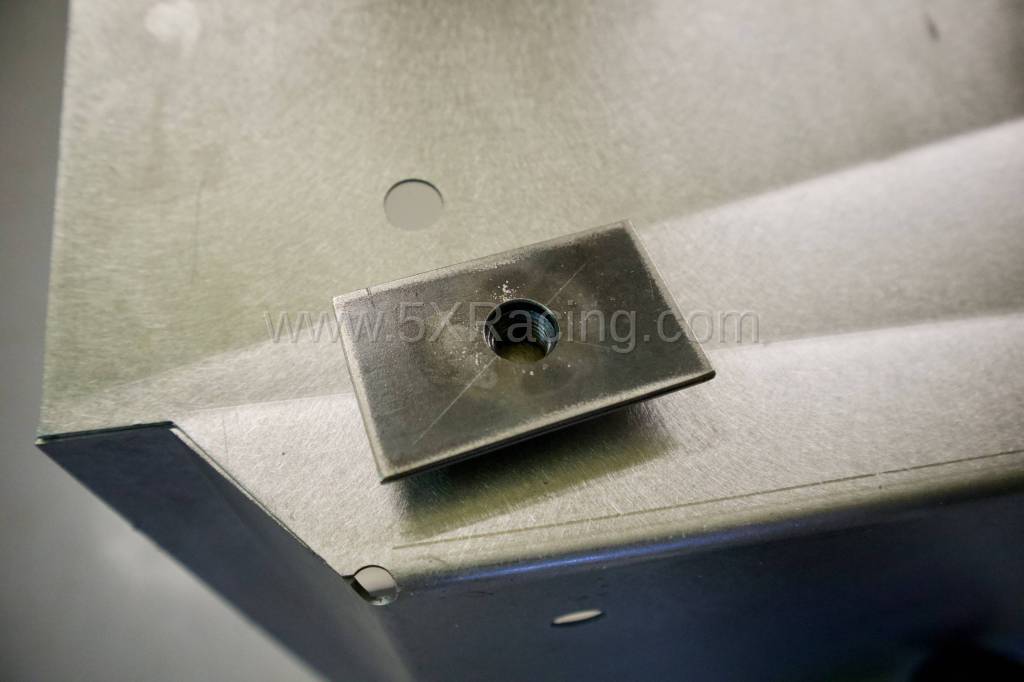

Seat belt bolt nut plate included, but not pre-welded to allow for a different size to be used

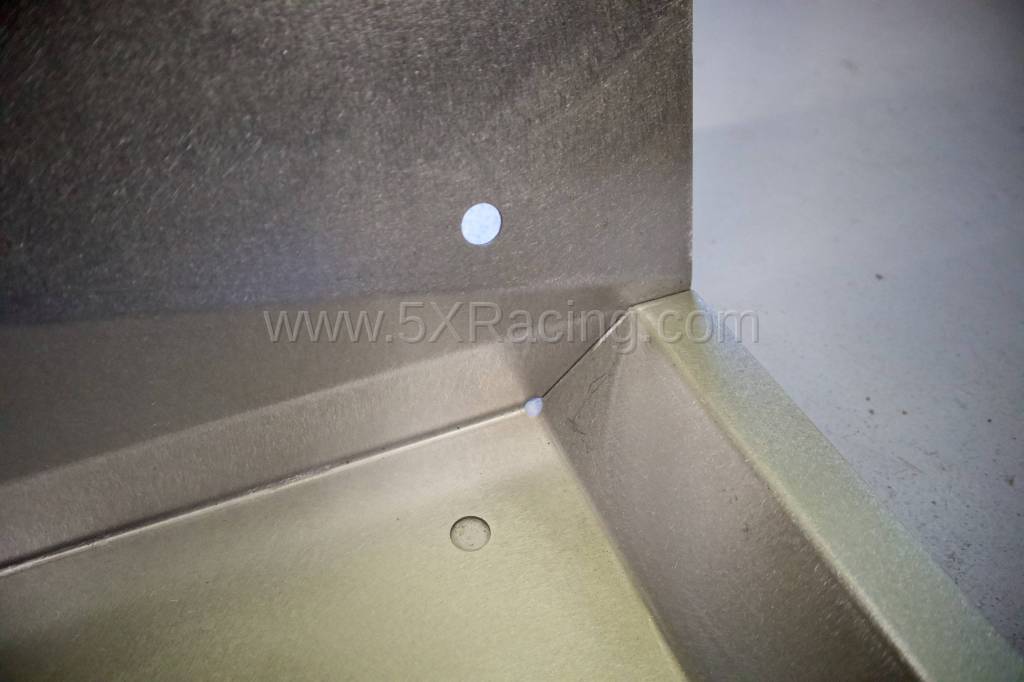

Drain holes in rear corners to allow water to escape
Front and rear lips to provide a drop-in installation and added strength around the front and rear of the pans edge
Step-by-Step instructional videos on our YouTube channel to show the installation process and help you along with your project (also in tabs above)
