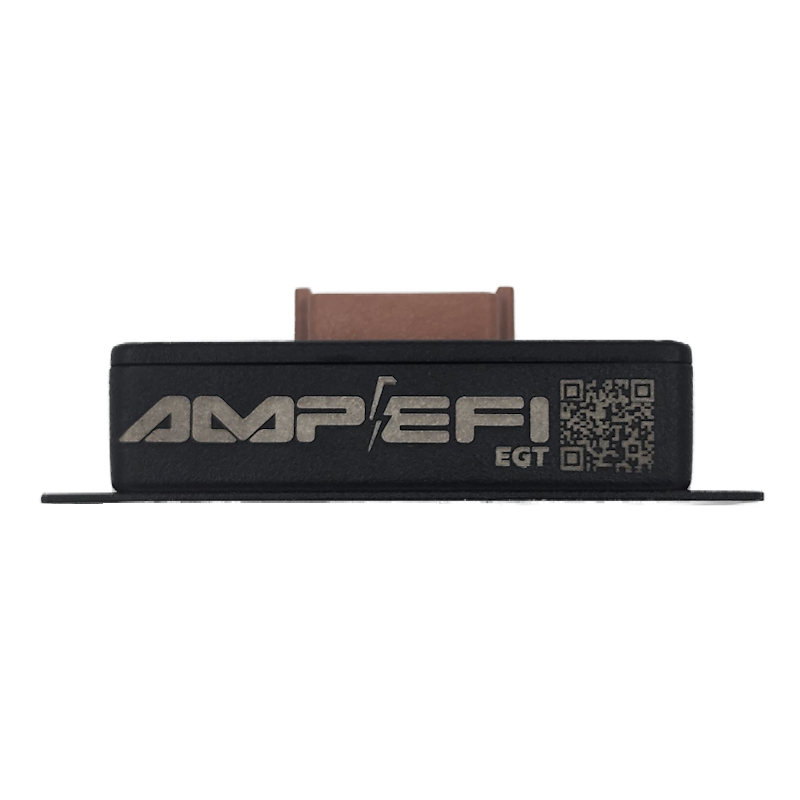

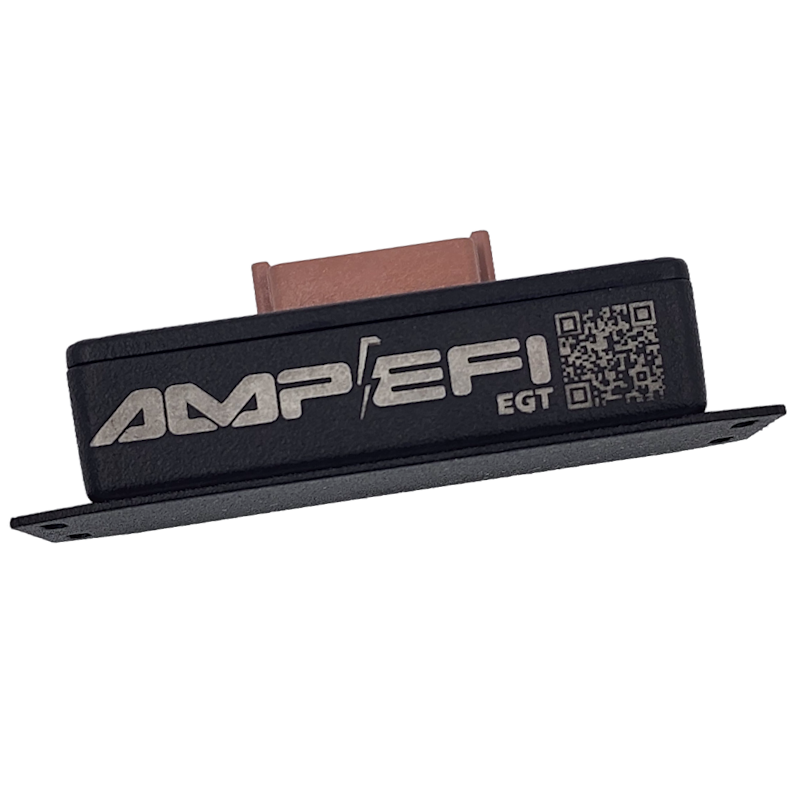

AMP QuadEGT CAN Module

The Quad EGT CAN Module is a high-precision, 4-channel thermocouple interface designed to give you professional-grade exhaust gas temperature data for each cylinder. Compatible with MegaSquirt ECUs and other systems via configurable CAN IDs, it’s perfect for tuning, diagnostics, and performance monitoring.

Key Features

• 4x K-Type Thermocouple Inputs
  • Supports common miniature thermocouple sockets for flexible installation
• Rugged Design - sealed metal enclosure suitable for underhood installation
• Cold Junction Compensated - designed for high accuracy
• Selectable CanBus Termination Resistor - simple dip switch to enable/disable

Specifications

• Temperature Range: 0 to 1250°C (32 to 2282°F)
• 16-bit Hardware
• Open Circuit & Fault Detection
• 20ms Broadcast Rate

CAN Communication

• AMP EFI & MegaSquirt
  • Compatibility
    • MS3Pro
    • MSPNP-Pro
    • MS3X
    • MS3
  • Plug-and-Play using CANEGT broadcast
• Other ECUs: Supports 8 configurable CAN bus IDs for wide compatibility

MS3 Safety Features

• Configurable Over-Temp Warnings
• AFR Compensation: Add fuel per cylinder based on EGT
• Safe Engine Shutdown: Prevent catastrophic failures

Included in the Box

• (1) Quad EGT CAN Module
• Options:
  • Module ONLY
  • Module with DTM Connector and Pins

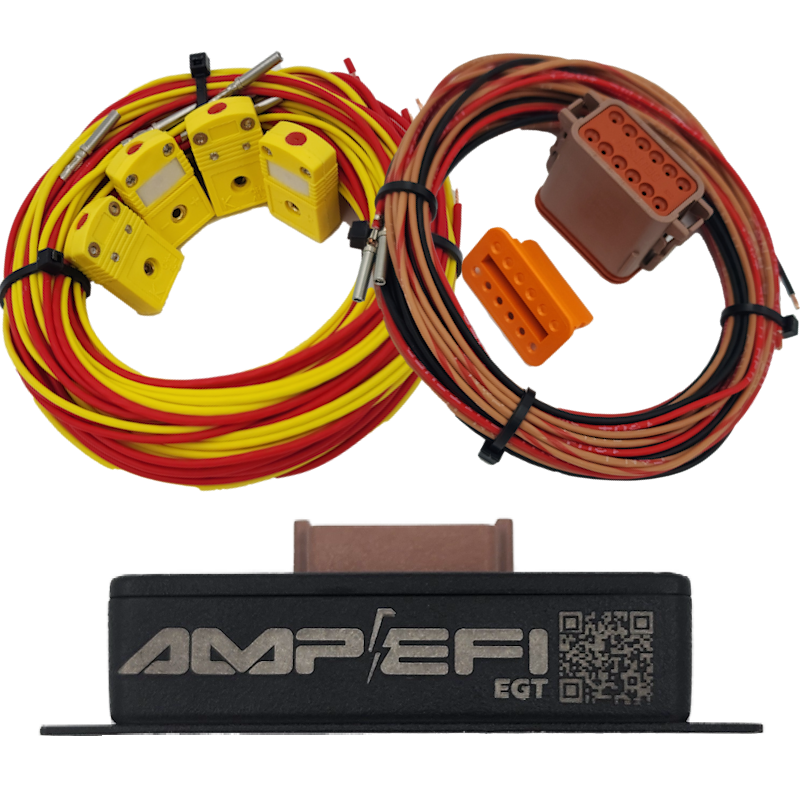

  • Module with Harness
