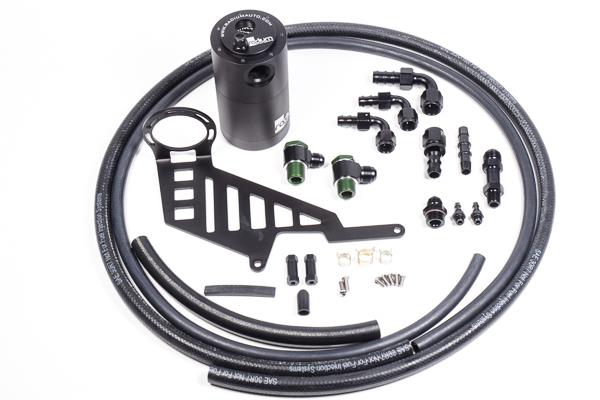

Radium Air Oil Separator-Return (AOS-R) Kit, FR-S/BRZ/GT86

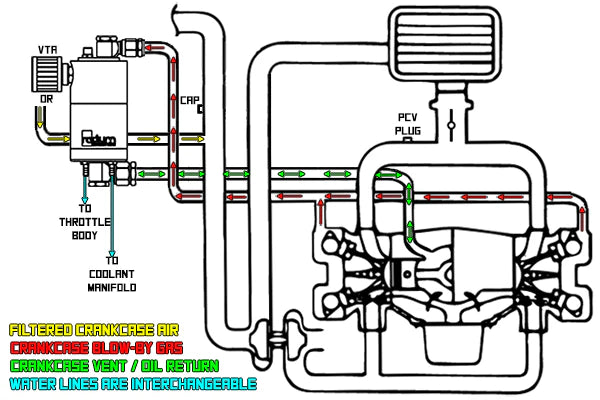

High-powered modified Toyota 4U-GSE and Subaru FA engines tend to generate excessive blow-by oil and gasses. In these cases, an ordinary small catch can may quickly fill with oil and not be adequate. Like the Radium Engineering, the AOS-R (Air Oil Separator-Return) kit is responsible for keeping blow-by oil and other pollutants out of the intake pipe, manifold, turbocharger, and intercooler during all engine loads. The main difference is that an AOS-R system returns what is collected back into the oil pan (as shown below) so there is no servicing required. The AOS-R is constructed of three CNC machined sections that screw together and are sealed with O-rings.

The built-in heater keeps water from condensing in the AOS-R. And because water is more dense than oil, there is an integrated water trap found around the bottom perimeter of the can. This prevents water from descending into the oil pan if ever present. Furthermore, because the water is trapped against the heater, it will eventually boil and evaporate out of the system.

BENEFITS

• Effectively raises the octane and increases engine performance with cleaner inlet air.
• Prevents oil buildup in the intake or intercooler system walls, throttle body, intake manifold, etc.
• Lowers hydrocarbon emissions.

FITMENT

• 12-16 Scion FR-S (LHD)
• 12-21 Toyota GT86 (LHD)
• 12-20 Subaru BRZ (LHD)

This kit is not compatible with RHD vehicles. For RHD vehicles, our Universal AOS must be used for custom mounting and plumbing.
