THE Bigger BIG Brake Kit

We have teamed up with BroFab to bring you guys this kit! Now we offer the entire kit in one stop shop and you no longer have to piece it together!

When a big brake kit just isn’t enough for your high HP build we’ve got the solution for you. These brakes are based on either 11.75”x1.25” rotor common in the circle track world but made to fit your Miata. They are designed to use a Wilwood Superlite patterned (3.5” lug mount) caliper which several manufactures make compatible calipers to fit. Most of our customers have been taking advantage of the cheap but unfortunately discontinued AFCO calipers while the supplies last. After those are dried up you can select a caliper that fits your budget from Wilwood, AP, Coleman and a few others. These calipers all use the 7420 pad shape which has a massive .800” thickness and most all compounds are available.

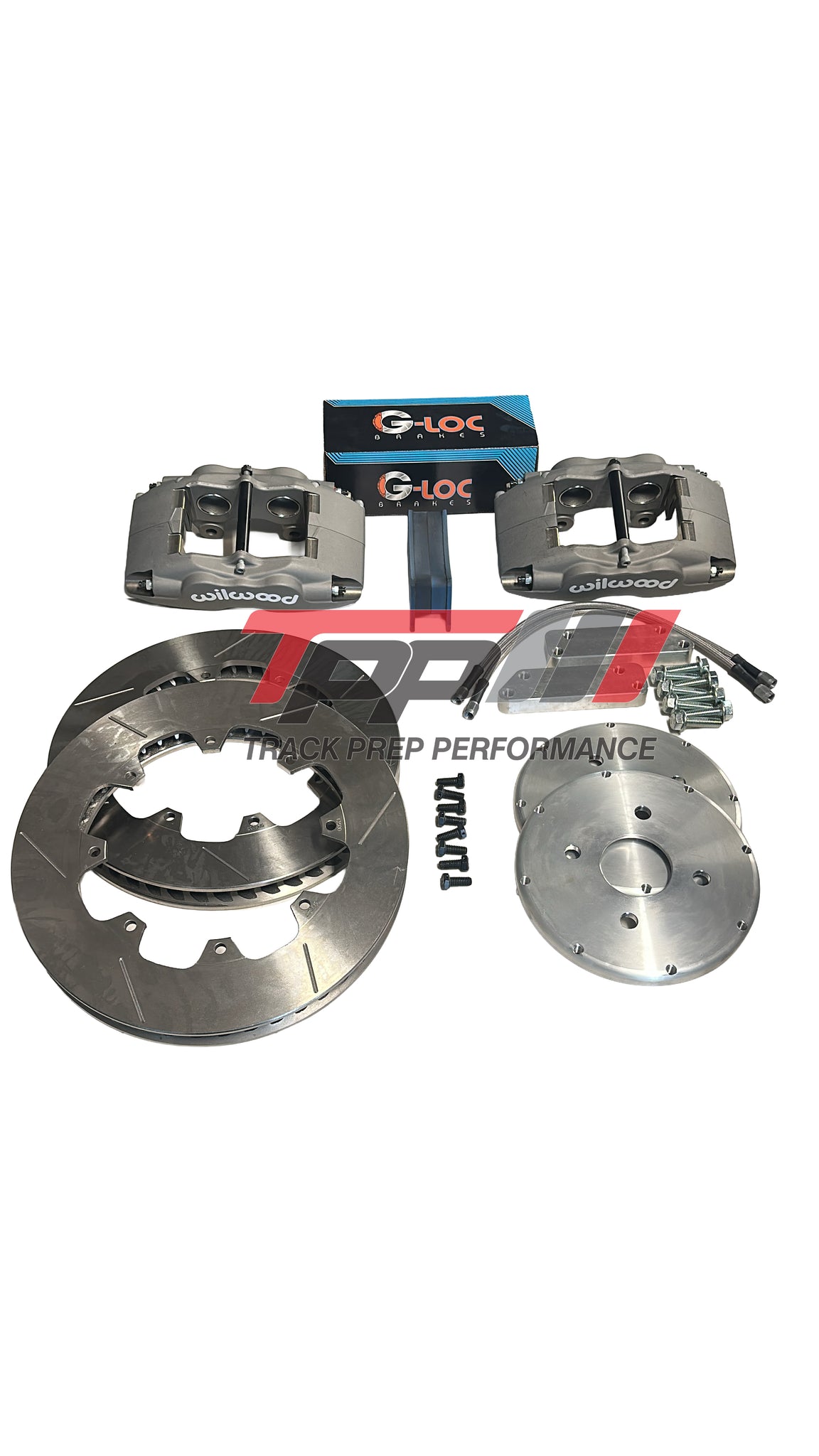

What's Included":

• Brofab Rotor Hats
• Brofab Caliper Brackets

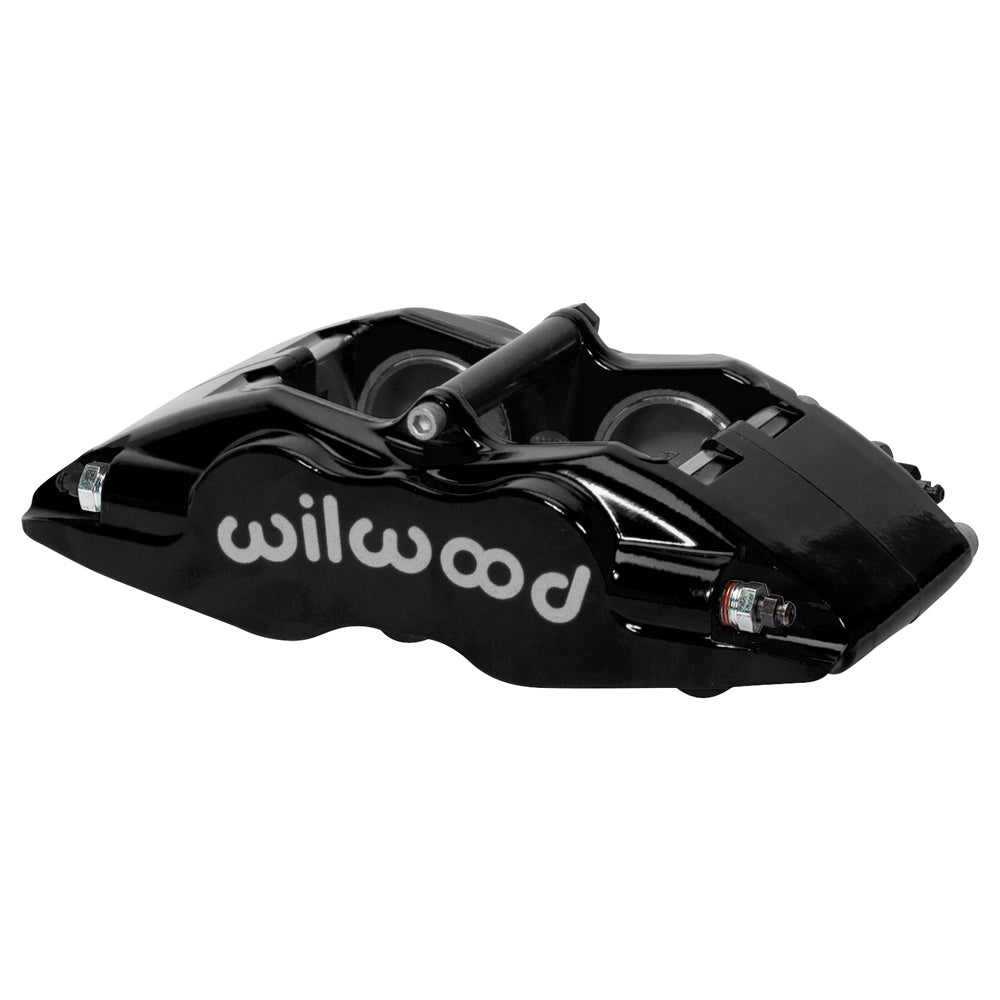

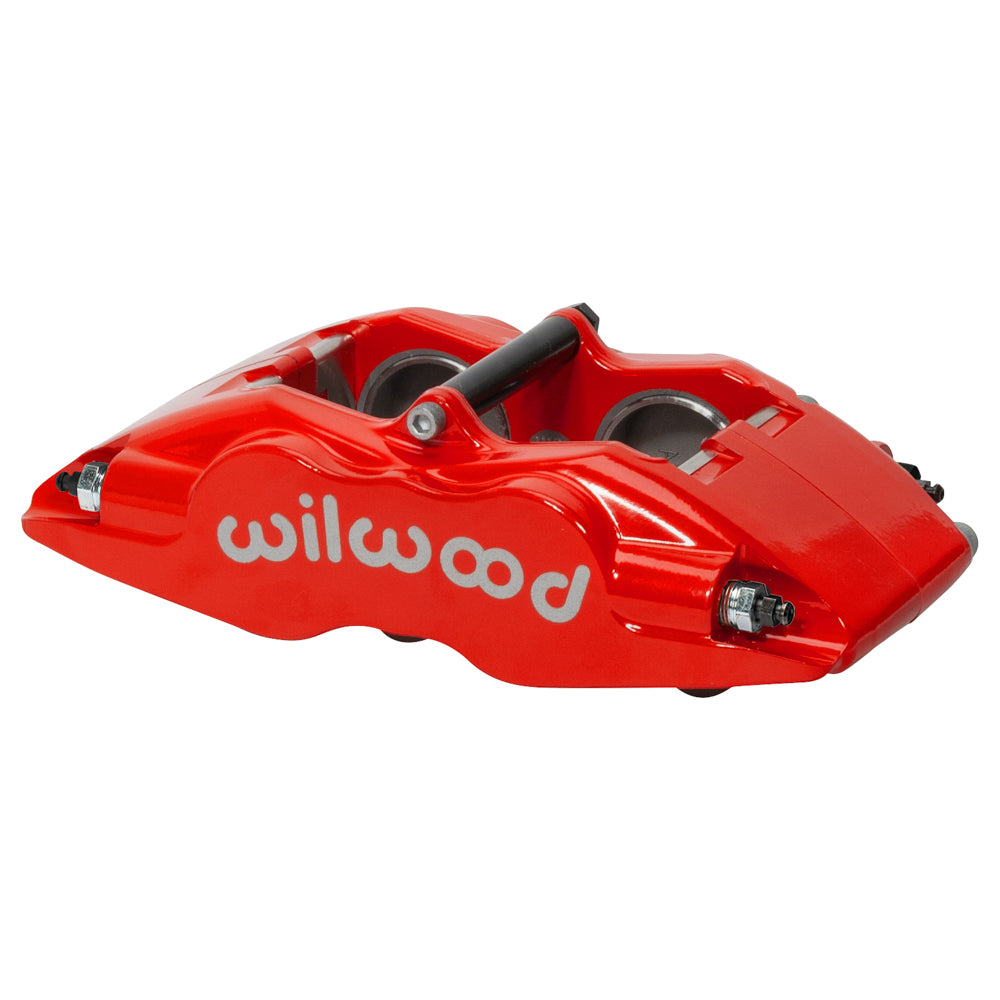

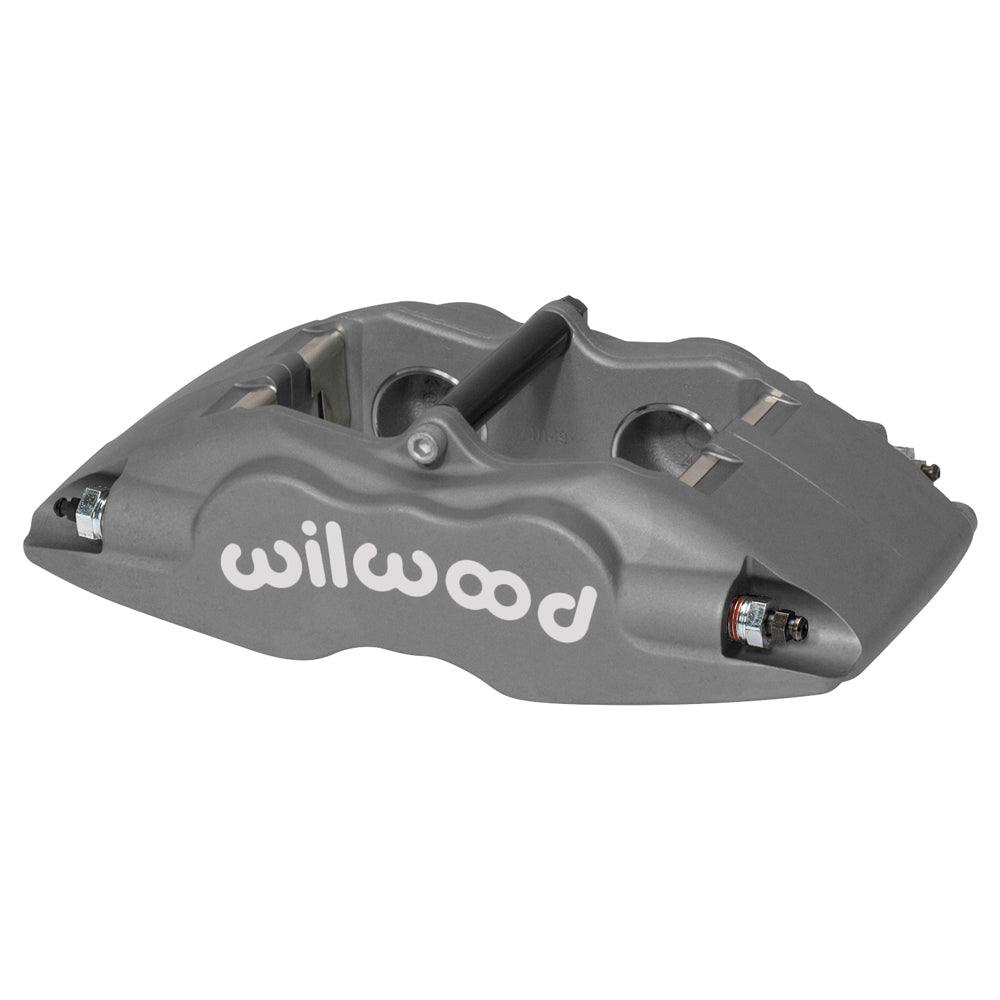

• Wilwood Superlite Calipers x2 (Color choices below)
  • Gray Anodized
  • Gloss Black
  • Gloss Red
• Directional Vented Rotors x2 (Options Below)
  • Standard Blank Rotors
  • Slotted Rotors
• Stainless Steel Brake Lines x2 (Front Only)
• Safety wire rotor hardware x2

For G-Loc 7420 Pads Click this link.

The biggest downside to such a massive 1.25 rotor brake option is wheel fitment, most 9.5” or wider wheels will clear but anything narrower usually has interference issues with the barrel of the wheel. Below are some of the known fitments.

Confirmed Fitment Wheel List:

• Jongbloed 15x10’s
• Jongbloed 15x9 with 10mm spacer
• Freeform 15x9.5
• Konig Deka 15x10
• Konig Deka 15x9 with 8mm spacer
• Konig Countergram 15x8 with 8mm spacer
• Advanti Storms 15x9 with 10mm spacer
• Advanti storms 15x8 with 10mm spacer
• Team Dynamics 15x8 with 10mm spacer
• KE 15x10 with light grinding
• Konig Dial in 15x9 with 13mm spacer
• FM Kogekis 15x9 with 6mm spacer

more being added daily

Disclaimer

These kits are made to order so lead times vary, please reach out for an updated delivery estimate. Wait times can be as long as 4-5 weeks or as quick as next day depending on stock.
