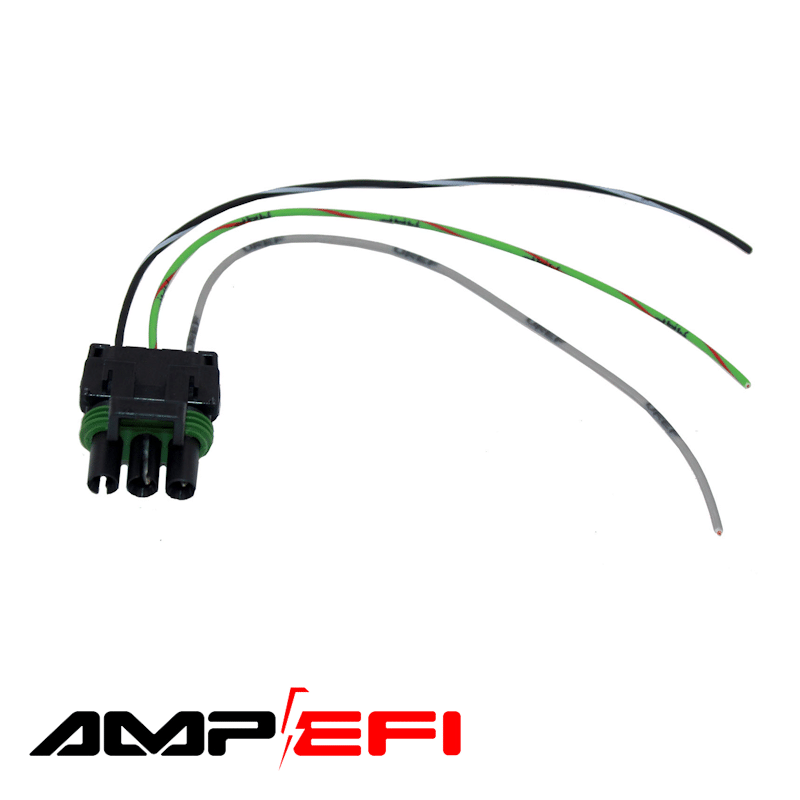

GM 3 Bar MAP Sensor 6″ Pigtail

The 6-Inch GM 3 Bar Pigtail designed to streamline the installation of GM 3-Bar MAP Sensors. This pigtail features three wires, each with specific color coding for easy connection and accurate pressure measurements in your engine management system.

Features:

• Three-Wire Design: Connects to GM 3-Bar MAP Sensors with three wires
• Extended Length: 6 inches for flexibility in installation
• Durable Construction: Made from high-quality materials for durability
• Easy Installation: Simplifies the wiring process for a secure connection

Wiring Color Coding and Functions:

• Red Wire: 5V Vref
• Black Wire: Sensor Ground
• Green Wire: Signal Output to ECU

Specifications:

• Wires: 3 wires
• Length: 6 inches
• Compatibility: GM 3-Bar MAP Sensors
• Material: High-quality plastic and metal contacts

Included in Box:

• 6-Inch GM 3 Bar Pigtail
